Description
Product Description
This series of electric pumps is widely used in industry, agriculture, mining, construction,
and municipal works. Suitable for slurry, sewage, and liquids with solids, as well as for
irrigation and pond dredging.
Scope of Use
1. Medium temperature: ≤ +40 °C
2. pH value range: 4 – 10
3. Medium density: < 1.2 × 10³ kg/m³
4. Maximum submersible depth: 5 m
116. Please specify separately when ordering if these limits are exceeded.
Product Parameters
| Parameter |
Value |
| Flow Rate |
1500 |
| Head |
8 |
| Speed |
980 |
| Motor Power |
55 |
| Pump Efficiency |
– |
| Voltage |
380 |
| Frequency |
50 |
| Shaft Power |
– |
| Cavitation Margin |
– |
Material Description
| Component |
Material |
| Impeller |
HT200 |
| Pump Body |
HT200 |
| Pump Shaft |
45#钢 |
| O-Ring |
NBR |
| Electrical Material |
铜绕组 |
| Other Material |
SIC/C-SIC/SIC-NBR |
Operating Conditions
| Condition |
Value |
| Maximum Ambient Temperature |
– |
| Maximum Liquid Temperature |
40℃ |
| Maximum Working Pressure |
10 bar |
| Conveying Medium |
≤1.2×10³ kg/m³ 轻质污水 |

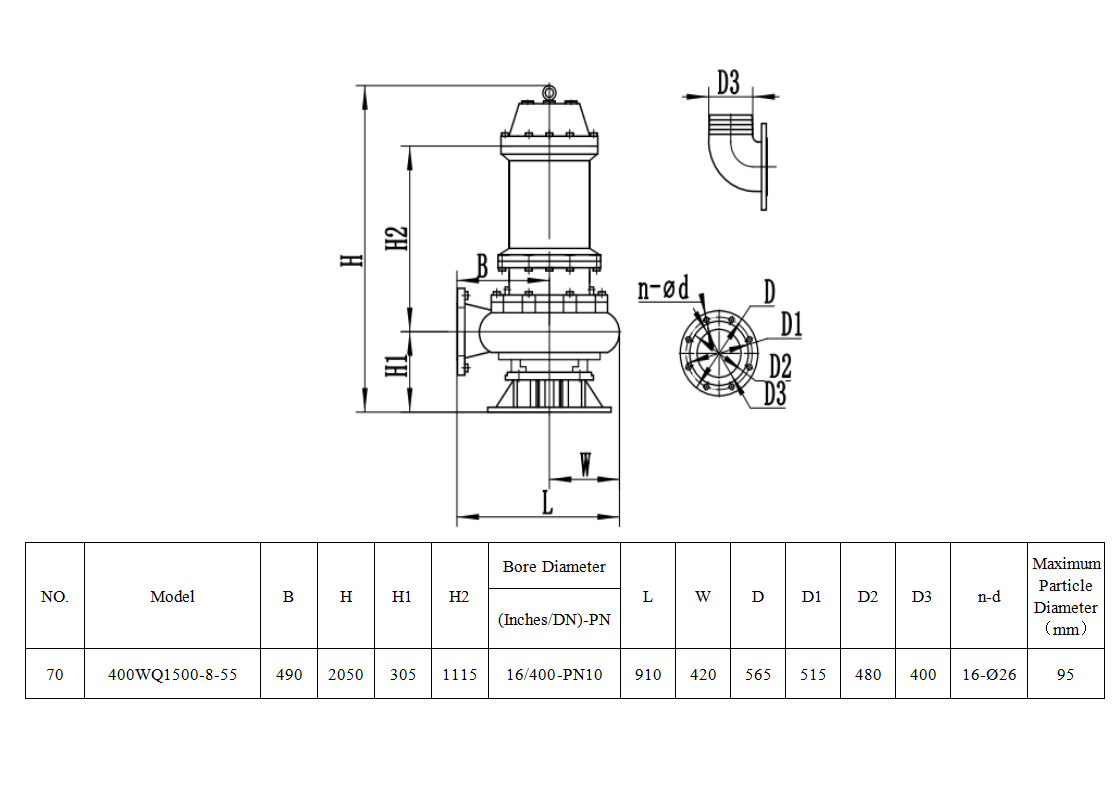

Connection Method
| Item |
Value |
| Inlet Caliber |
– |
| Outlet Caliber |
400 |
| Connection Method |
软管 / 法兰 / 耦合 |
Motor
| Motor Parameter |
Value |
| Motor Speed |
980 |
| Capacitance Capacity |
– |
| Rated Voltage |
380 |
| Number of Phases |
三相 |
| Protection Level |
IP68 |
| Insulation Level |
B |
| Motor Power |
55 |
| Frequency |
50 |
| Rated Current |
104 |
| Energy Efficiency Level |
无 |
| IE3 Power Factor |
0.86 |
| Extended Shaft Bearings |
6315 + 7315 7315*1 |
| Non-Extended Shaft Bearings |
6314 |
| Efficiency |
93.1 |
Packaging
| Item |
Value |
| Gross Weight |
/ |
| Dimensions of Packaging |
/ |
